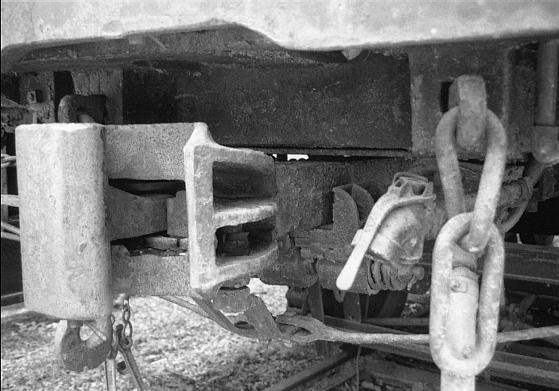

1

Coupler and angle cock on platform end.

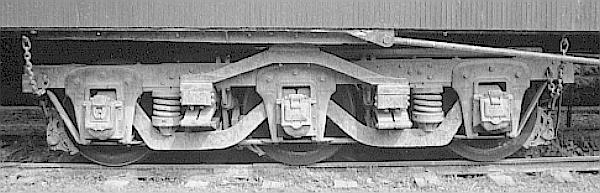

  2

Six wheel truck on "B" or platform end.

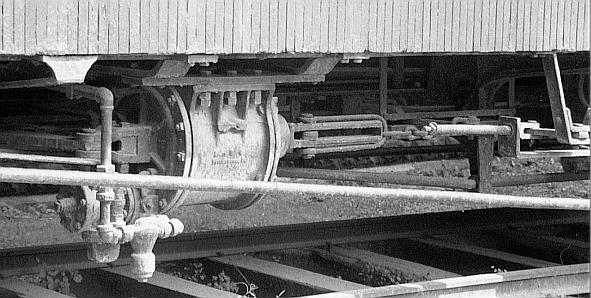

  3

Brake cylinder and triple valve.

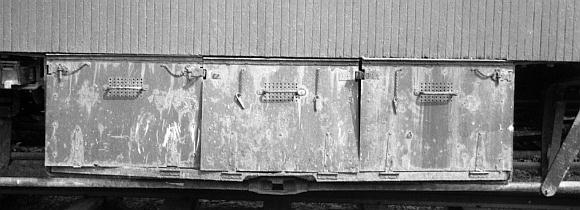

  4

Battery boxes.

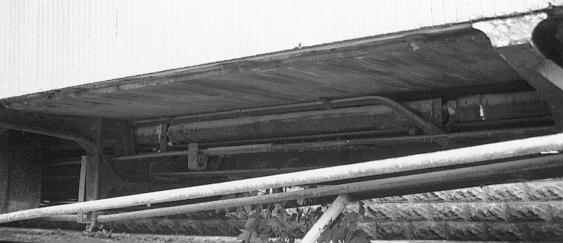

  5

Brake piping and rods.

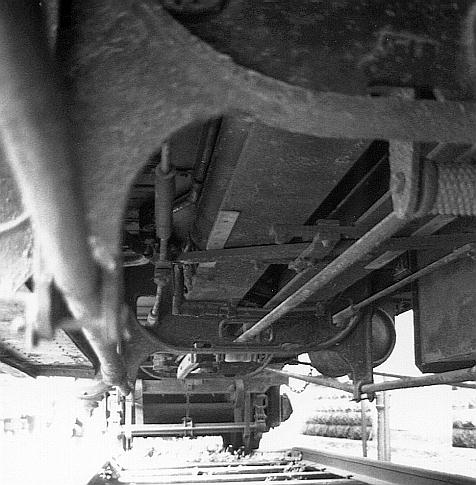

  6

Queen post, brake rigging, center sill.

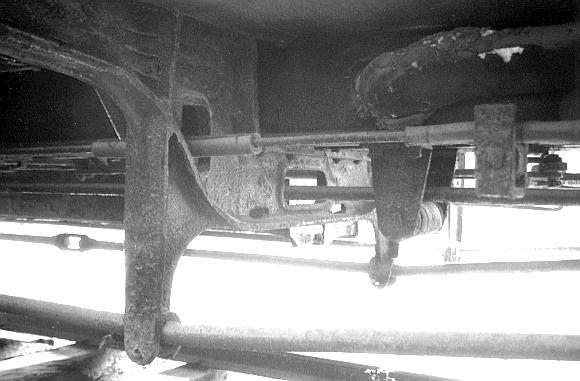

  7

Brake rigging, queen post, steam line.

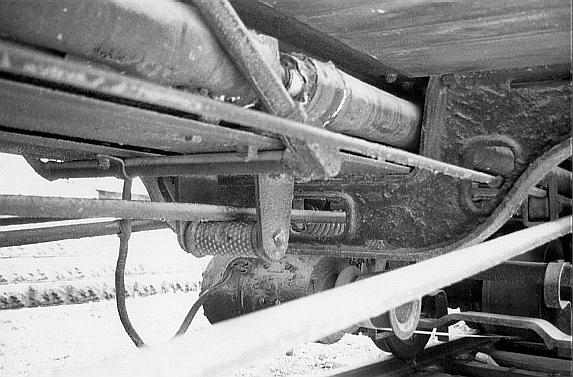

  8

Generator for recharging batteries, run by belt on axle of front truck.

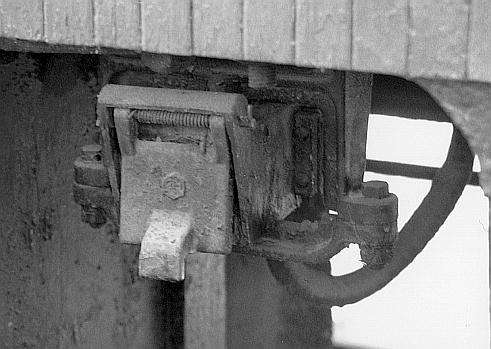

  9

Small box of unknown usage.

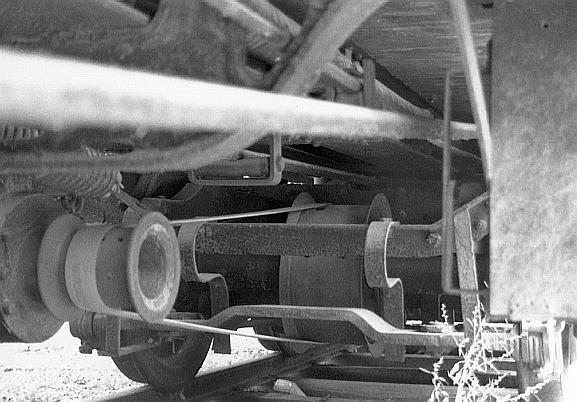

  10

Battery generator belt drive.

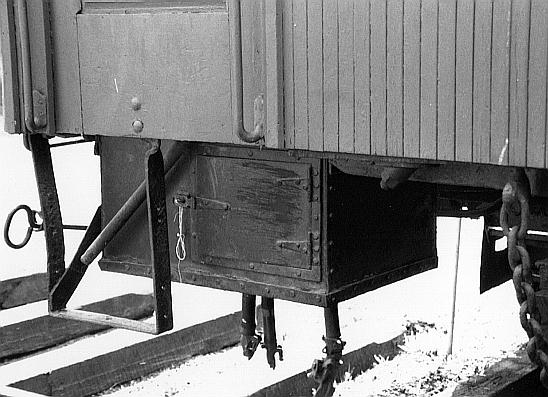

  11

Small box below vestibule end. Ice boxes are directly above; door permanently sealed. Note stirrup step.

  12

Back side of battery generator.

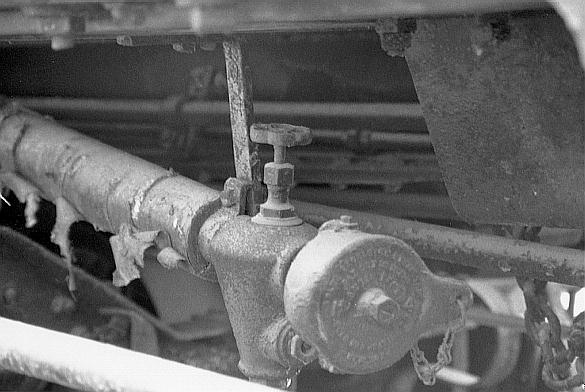

  13

Steam heat connection for stationary steam source. Funnel shaped object is a condensation trap and shutoff valve.

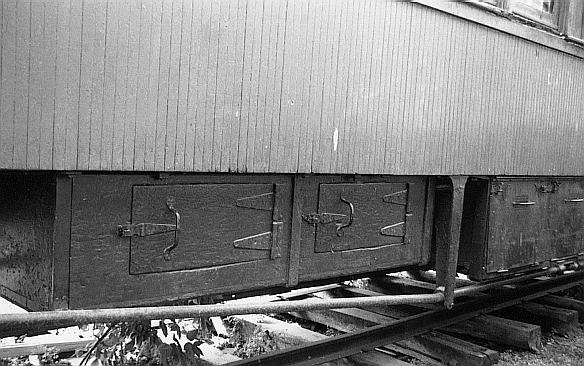

  14

Storage boxes.

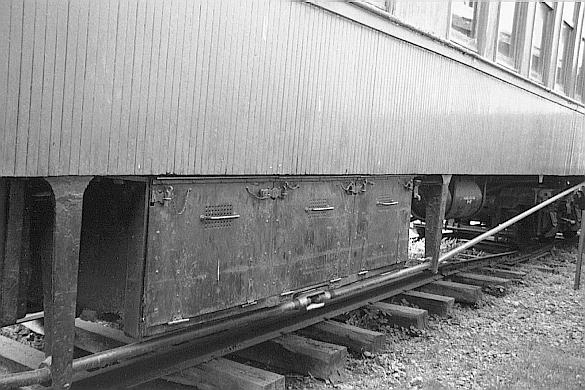

  15

Battery boxes between queen posts.

  16

Stationary electrical recepticle to right of battery boxes.

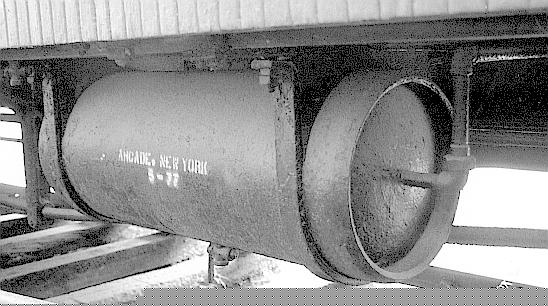

  17

Auxilliary air reservoir for brake system.

  18

Queen post, brake rigging, truss rods and turnbuckle.

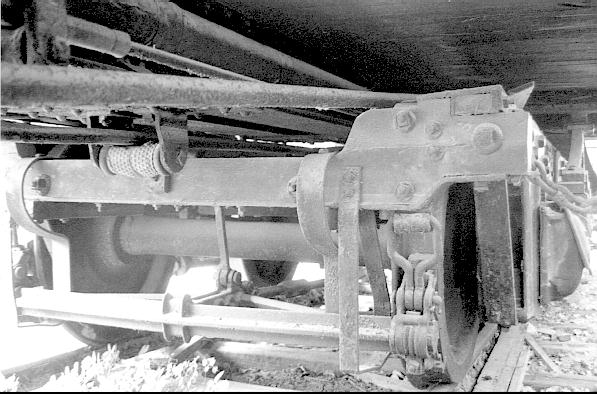

  19

Brake shoe hangers on rear truck.
